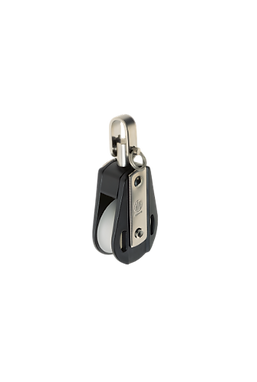

HYE Standard Single with Swivel
Standard
Find the technical data below
Technical specification
1512
Rope diameter Ø
Sheave diameter Ø
Breaking load daN
Working load daN
Primary sheave diameter Ø
Secundary sheave diameter Ø
Base
12 mm
35 mm
1190 daN
595 daN
Technical specification
1513
Rope diameter Ø
Sheave diameter Ø
Breaking load daN
Working load daN
Primary sheave diameter Ø
Secundary sheave diameter Ø
Base
13 mm
43 mm
1110 daN
555 daN
Technical specification
1514
Rope diameter Ø
Sheave diameter Ø
Breaking load daN
Working load daN
Primary sheave diameter Ø
Secundary sheave diameter Ø
Base
14 mm
50 mm
2000 daN
1000 daN
Technical specification
1510
Rope diameter Ø
Sheave diameter Ø
Breaking load daN
Working load daN
Primary sheave diameter Ø
Secundary sheave diameter Ø
Base
10 mm
30 mm
800 daN
400 daN
Technical specification
1516
Rope diameter Ø
Sheave diameter Ø
Breaking load daN
Working load daN
Primary sheave diameter Ø
Secundary sheave diameter Ø
Base
16 mm
63 mm
2030 daN
1015 daN
