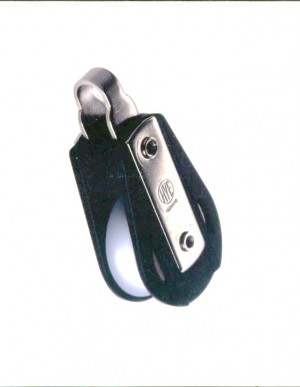

Single block with bow

Art. nr.  rope diameter sheave diameter breaking load s.w.l
30010 10 mm 30 mm 880 daN 440 daN
30012 12 mm 35 mm 1120 daN 560 daN
30013 13 mm 43 mm 1500 daN 750 daN
30014 14 mm 50 mm 2100 daN 1005 daN
30016 16 mm 63 mm 2210 daN 1105 daN

Product description

Single block with bow

    Traditional plastic laminated blocks

  • suitable for rope
  • cheeks and shave of plastic laminate
  • strong frame construction of stainless steel 316
  • brass bushed bearings
